Home > Products > Solar Led Light > ALL IN ONE SOLAR LIGHT

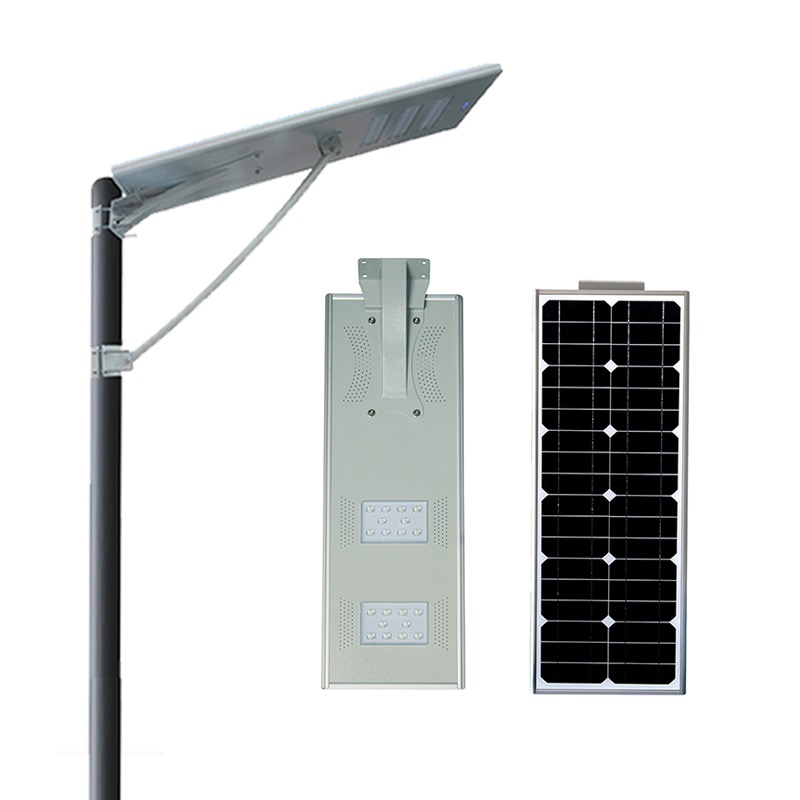

ALL IN ONE SOLAR LIGHT

Product Item : LM-AIO-020E
Category： Solar Led Light
APPLICATION:STREET/GARDEN
POWER:SOLAR
FINISH:SURFACE ANTI-AGEING ELECTROSTATIC SPRAY PROCESSING,SUPER RESISTANCE TO CORROSION
LIGHT SOURCE:LED
Product description：Simple modern design, user-friendly installation and easy maintenance structure, modular product portfolio planning, professional and reasonable optical design for road, expressway,bridge and square.
Order online

Power		20W AIO	30W AIO	40W AIO	50W AIO
Model		LM-AIO-020E	LM-AIO-030E	LM-AIO-040E	LM-AIO-050E
solar panel	Solar Max power	30W/18V Germany solarworld	50W/18V Germany solarworld	55W/18V USA Sunpower	70W/18V Germany solarworld
	Life time	25years
Battery	Type	Lithium battery
	Capacity	13AH/12V	20AH/12.8V	25AH/12V	30AH/12V
	Life time	8years
LED Lamp	LED Max power	20W/12V	30W/12V	40W/12V	50W/12V
	led chip	Bridgelux from USA
	lumen (LM)	2400lm	3600lm	4800lm	6000lm
	led chip	21pcs*45mil	30pcs*45mil	42pcs*45mil	51pcs*45mil
	Life time	50,000hours
	Viewing Angle	120°
Mode	Working mode	Light control + Time control + Sensor + APP control
Lighting	Charging(h)	5-6h	5-6h	5-6h	5-6h
	Discharging(h)	12hours/day, 5-7 rainy or cloudy days as backup
Work temp	range(°C)	-30°C~60°C
Color temp	range(k)	3000-6500K
Height	range (m)	5-6m	6-7m	6-7.5m	7-8m
Space	range (m)	20-25m	25-30m	25-30m	27-30m
Material		6063 aluminium alloy
Certificate		CE / ROHS / IP65
Warranty		5 years
Product	Size(mm)	65032545mm	96034045mm	96034045mm	120034045mm

Net Weight	N.W.(kgs)	7.0kgs	11.0kgs	12.0kgs	17.0kgs
Packing	Size(mm)	760400150mm	1060400200mm	1320400200mm	1345400200mm

G.W.	G.W.(kgs)	8.0kgs	13.0kgs	14.0kgs	18.0kgs
APP	Y/N	Y	Y	Y	Y

PRODUCT DESCRIPTION

ALLTOP -Custom Solar Led Lights Manufacturer, Integrated Solar Street Light | All-4

All-in-one Solar Street Light

All-in-one design and charged by solar, so the lighting kits are completely wireless and easy to be mounted. Widely arrange mount applications on wall, fence, tree, steps, etc. to light up your garden, hallway, flowerbeds, pillar, deck, yard, patio, or driveway and any other places

ALLTOP -Custom Solar Led Lights Manufacturer, Integrated Solar Street Light | All-5

High Quality LED Chip

The LED chip is a semiconductor chip that emits light and is not easily broken, so that its service life can reach 50,000 hours, while the ordinary incandescent lamp has a service life of only one thousand hours;

ALLTOP -Custom Solar Led Lights Manufacturer, Integrated Solar Street Light | All-6

Polycrystalline

Polycrystalline silicon solar panels, which are easier to manufacture, save power, and have low overall production costs.

Positive power tolerance: 0~+ 5W

100% EL double-inspection ensures modules are defects free

Modules binned by current to improve system performance

ALLTOP -Custom Solar Led Lights Manufacturer, Integrated Solar Street Light | All-7

Human body induction

Strong light environment (daytime) does not light up!

In the low light environment or at night, the sensor body detects the change of infrared heat energy caused by the movement of the human body and then triggers the lighting. Sensing diameter is farther and more sensitive.
