LM-ST-K

Product Item : LM-ST-K100
Category： Led Street light
APPLICATION:STREET
BODY:DIE CAST ALUMINUM
FINISH:SURFACE ANTI-AGEING ELECTROSTATIC SPRAY PROCESSING,SUPER RESISTANCE TO CORROSION

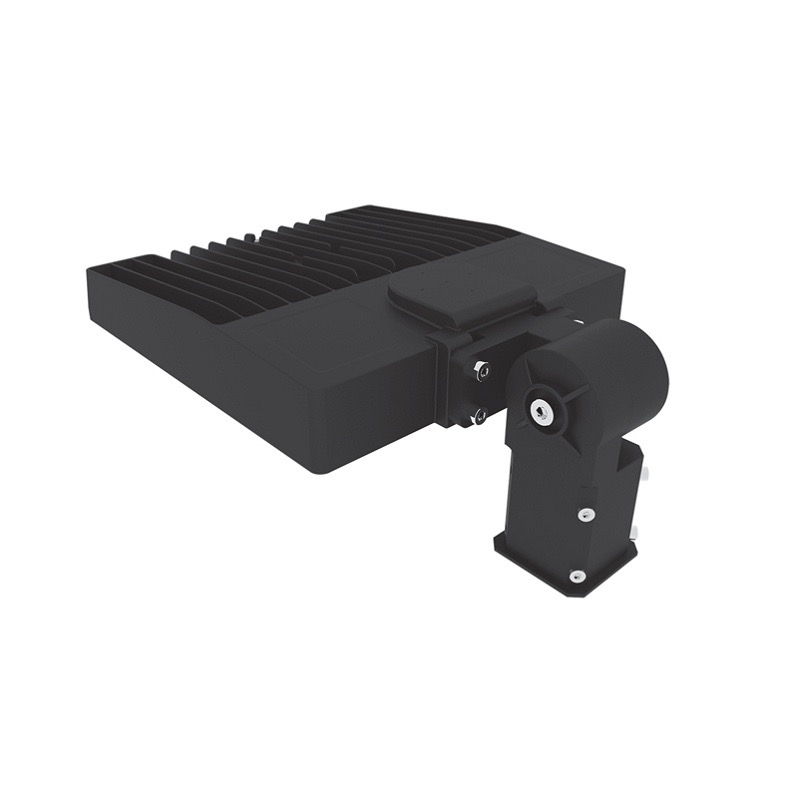

FIXING:SIDE FITTING Ø60MM, ANGLE ADJUSTABLE.
Product description：Simple modern design, user-friendly installation and easy maintenance structure, modular product portfolio planning, professional and reasonable optical design for road, expressway,bridge and square.
Order online

Product Description

1. High brightness SMD >125lm/W, 3030 SMD;
2. Isolated constant current led driver, the light work stably;
3. CCT: Warm white 2700-3000K; Pure white 4000-4500K; Cool white 6000-6500K;
4. PF>0.95, CRI≥80;
5. Beam angle: Type II Type III Type IV Type V
6. Input Voltage: AC100-277V/ 50-60Hz.

Model	LM-ST-K
LED Brand	3030 SMD
Driver Brand	Meanwell HLG
Power	150W
Input Voltage	AC100-277V
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	125lm/w
Lamp Rated Lumen output	18750lm
Color Temperature	2700K-6500K
Beam angle	Type II Type III Type IV Type V
Working Temperatures	-25°-45°
Lifespan	50000 hours
IP class	IP65
Certification	CE, ROHS
Application	Outdoor parking lot, street

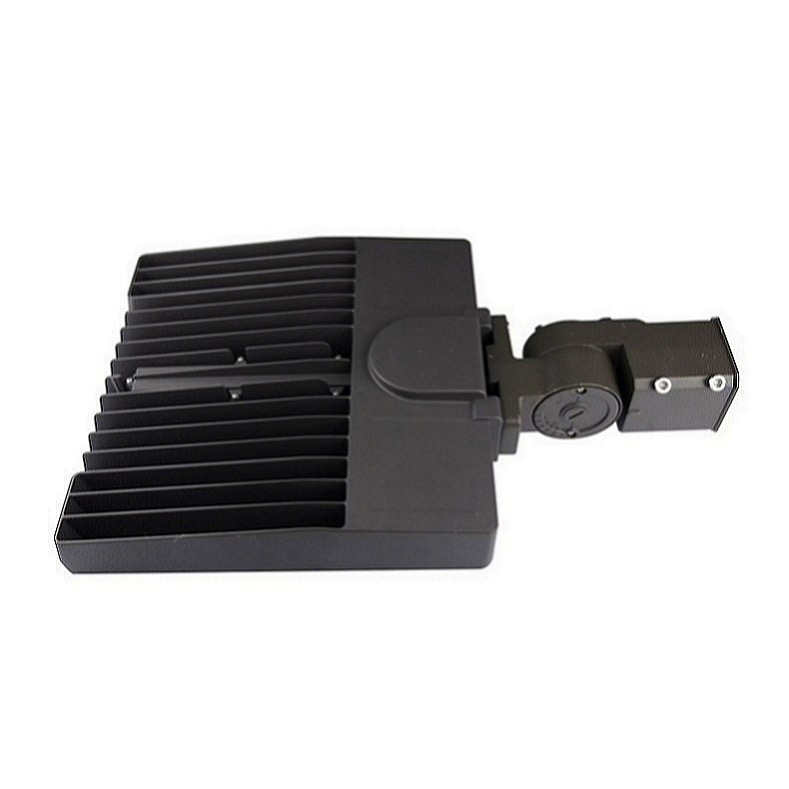

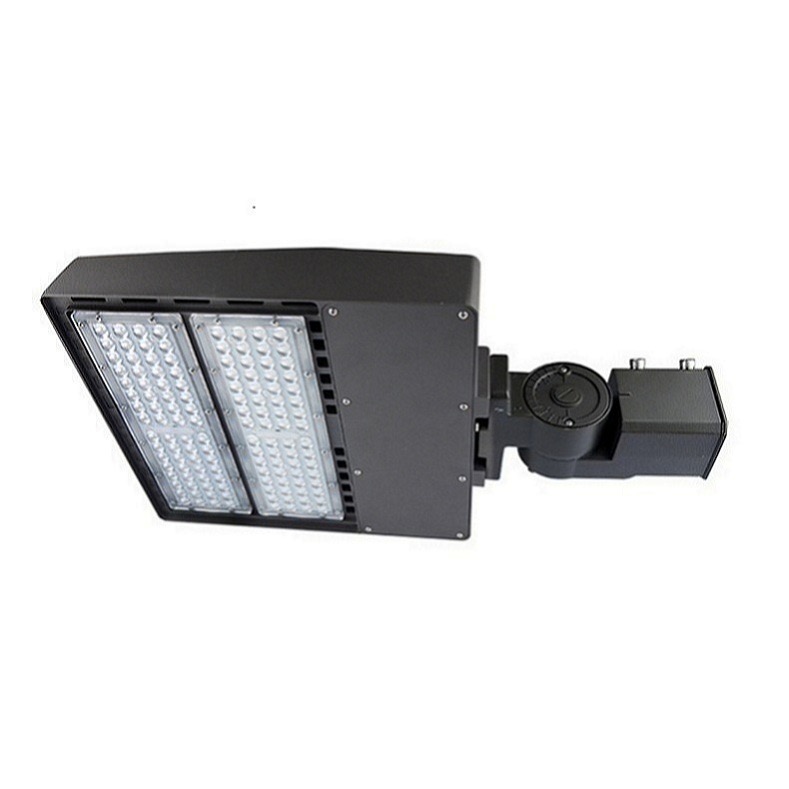

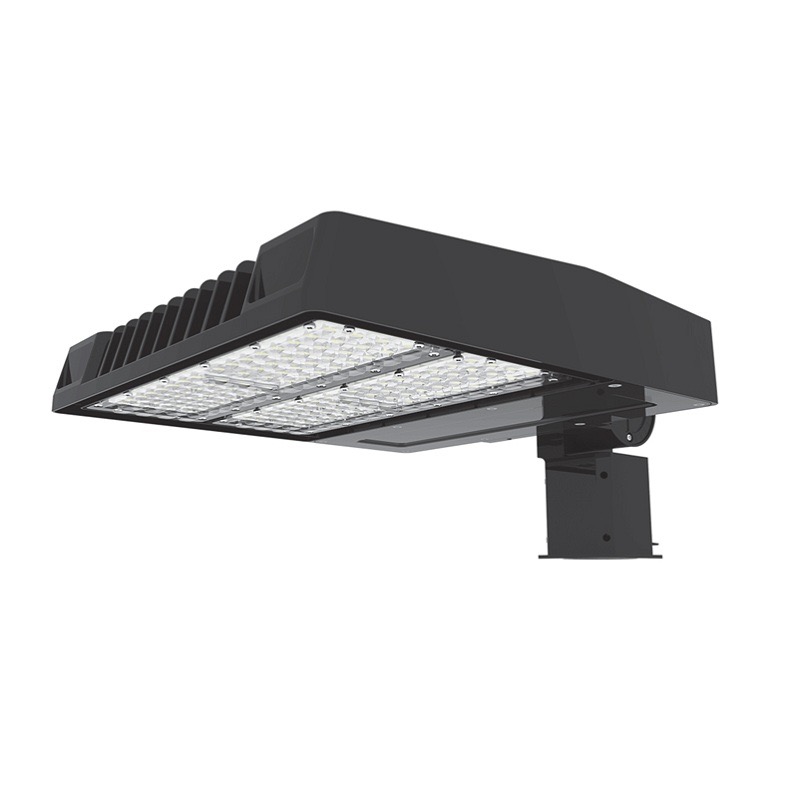

Lamp type	Led shoe box light

DLC ETL listed ip65 shoe box led street light 150w replace 400w halogen

Power	75W	100W	150W	200W	300W
Input voltage	AC100-277V, 347V, 480V
LED source	SMD 3030
Lumen output	9375lm	12500lm	18750lm	25000lm	37500lm
Dimension	43229073	43229073	53532280	53532280	741345103
CCT	2700-6500K
CRI	>80
PF	>0.95
Working temperature	-20+45°C
Beam angle	Type II Type III Type IV Type V
IP rating	IP65
Warranty	5 years
Lifespan	50000 hours
Certification	ETL DLC CE ROHS
Application	Parking lot, garage, flood outdoor
