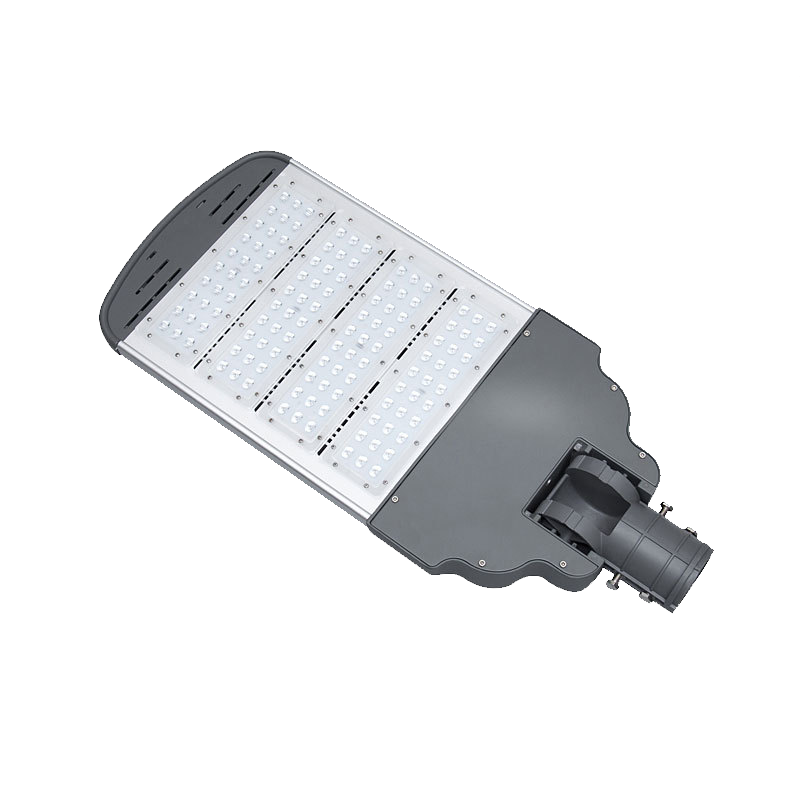

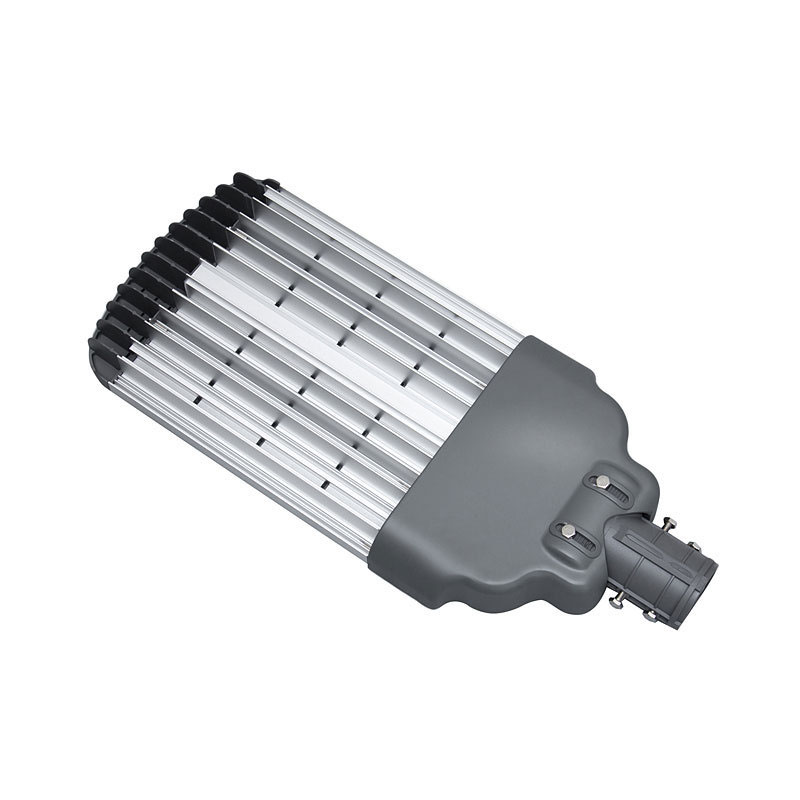

LM-ST-G

Product Item : LM-ST-F100
Category： Led Street light
APPLICATION:STREET
BODY:DIE CAST ALUMINUM
FINISH:SURFACE ANTI-AGEING ELECTROSTATIC SPRAY PROCESSING,SUPER RESISTANCE TO CORROSION
FIXING:SIDE FITTING Ø60MM, ANGLE ADJUSTABLE.
Product description：Simple modern design, user-friendly installation and easy maintenance structure, modular product portfolio planning, professional and reasonable optical design for road, expressway,bridge and square.
Order online

Product Code	LM-ST-G50	LM-ST-G100	LM-ST-G150	LM-ST-G200	LM-ST-G250
Rated Power	50W	100W	150W	200W	250W
Color Temperature	3000/4000/6000K	3000/4000/6000K	3000/4000/6000K	3000/4000/6000K	3000/4000/6000K
Luminous Flux	5500lm	11000lm	16500lm	22000lm	27500lm
Input Voltage	AC100-277V	AC100-277V	AC100-277V	AC100-277V	AC100-277V
Frequency Range	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF＞0.9	PF＞0.9	PF＞0.9	PF＞0.9	PF＞0.9
Color Rendering Index	＞70	＞70	＞70	＞70	＞70
Temperature of Working Condition	-35-50°C	-35-50°C	-35-50°C	-35-50°C	-35-50°C
Humidty of Working Condition	20-90%	20-90%	20-90%	20-90%	20-90%
LED Lifetime	50000h	50000h	50000h	50000h	50000h
Protection Grade	IP66	IP66	IP66	IP66	IP66
Installation Pipe Diameter	Φ60mm	Φ60mm	Φ60mm	Φ60mm	Φ60mm
Dimension	49531075mm	59531075mm	69531075mm	79531075mm	89531075mm
